The equipment

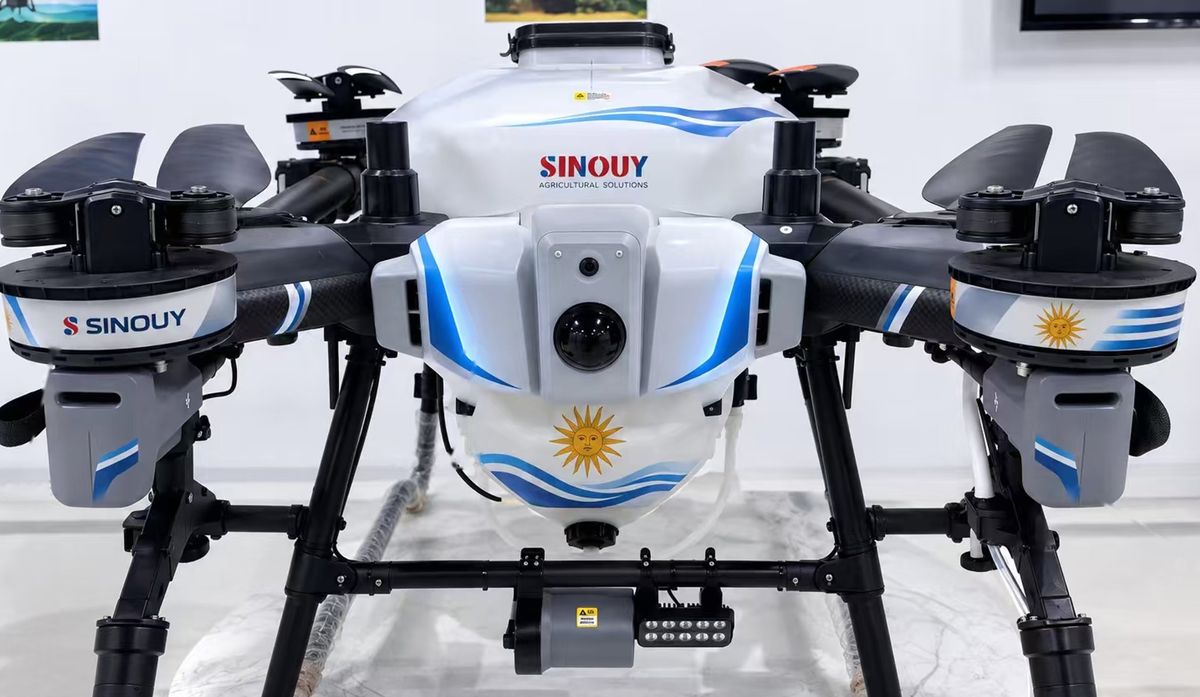

80-litre drone: ready to work

The heavy drone SinoUY imports and distributes as OEM representative. Up to 100 hectares a day of liquid spraying or solid spreading, with centimetre RTK accuracy and no trampling of the crop or the wet soil.

Book a unit Our bases

What the grower gains

What it does for your crop

Gets in where machinery cannot Wet soil, irregular plots or tall crops: you spray in the right window without waiting for the plot to dry.

No trampling, no compaction The equipment works above the crop: no wheel tracks, no crushed plants, no soil compacted while wet.

Up to 100 ha per day With tank and battery refills at the edge of the field and a rate of 10 L/ha; it depends on the field, the rate and the weather.

Variable-rate fertilising You apply the rate each zone needs: lower product cost and faster application.

Droplet size adjustable from 30 to 500 µm Drift control adapts to the product and the day's conditions: even coverage without carrying product onto the neighbouring plot.

Moves easily between fields Folding arms and its own trailer: the equipment moves between plots in minutes, with no special transport.

Manufacturer's data

Specifications

Spray tank	80 L
Pumps and nozzles	2 peristaltic pumps of 20 L/min · 4 IP67 centrifugal nozzles
Working width	6 – 10 m (depending on flight height and nozzles)
Droplet size	30 – 500 µm adjustable
Solid spreading	120 L hopper · up to 80 kg · auger and centrifugal disc, 5 to 10 m
Load transport	Up to 85 kg with hoist cable and anti-sway system
Output	up to 100 ha / day
Positioning	RTK ± 10 cm with mobile base station (IGM network, free)
Obstacle detection	LiDAR from 1 to 60 m + millimetre-wave radar · terrain following · automatic braking and avoidance
Structure	Folding carbon-fibre arms · 63" propellers · IP67 key modules
Weights	66.2 kg empty · 141.2 kg max take-off
Working speed	10 m/s working · 13.8 m/s flight
Power	Smart 68.4 V, 34,000 mAh battery (1,500 cycles) · 12 kW cooled charger · 14 kW generator on the trailer
Controller and link	7" screen · link up to 15 km on 2.4 / 5.8 GHz (URSEC) · FPV camera and lights for night work
Regulations	Operated under DINACIA (DAOD) rules and MGAP registration for aerial spraying

Data according to the manufacturer. Daily output depends on the crop, the rate and wind and temperature conditions.
Sign in to download the full datasheet (PDF)

Integrated mobile station

With the full kit you take the equipment ready to work at the edge of the field. If you prefer, you can also rent the drone alone.

Trailer with water tank and high-flow mixer
Sliding generator to charge batteries right in the field
3 batteries and fast charger
Nozzle kit and solid spreader
RTK base station and controller with screen
Hands-on induction at handover and support from the regional manager

Variable cost

No capital investment or permanent staff: you pay per equipment day, with the SinoUY weather guarantee.

Real support
